S30-3022
SKU: S30-3022
In Stock
Model Number: S30-3022

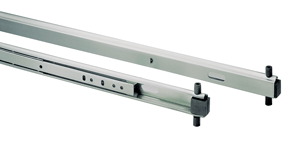

S30 series zinc plated steel full extension drawer slide. 22″ (550mm) length without rollers and a 75lb (40kg) load capacity.
Attributes
Mounting Type: Side
Space Required: 3/4″ (19mm)
Drawer Extension: Full Travel
Material: Zinc Plated Steel
Action: Nylon or Non-Corrosive Metal Rollers
Note: Load Rating Based On 18″(450mm) Slide Length
Height: 2-1/32″ (52mm)
Need a custom size?
Call us for a custom configure. 800.333.5151
Call us for a custom configure. 800.333.5151
To Order Call us at
800.333.5151
or inquire below
