KSPD122-127

Print page

In Stock

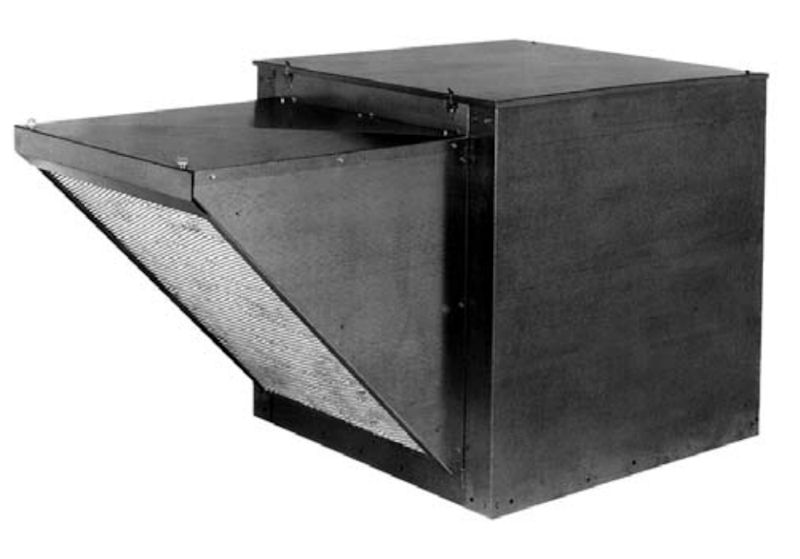

-Totally enclosed galvanized cabinet with hooded, filtered intake

-Top cap quick release latches

-Permanent, one inch, washable, aluminum filters

–Vibration isolators

-Insulated top cover provides weather protection for the motor and drive components

-Quick release latches provide tool-free access for inspection and maintenance of motor and drive components

-Blower assembly supported by rubber isolators to reduce noise and vibration level transmitted to the supporting structure

-Integral 3″ skirt with pre-punched mounting holes for ease of installation

-Intake hood with 1″ permanent, washable aluminum filters standard

Base: 32 1/4″

Max Watts/BHP Range: 293 – 550/.467

KSPD122: 916 CFM @ 0.25″ static pressure

KSPD123: 1071 CFM @ 0.25″ static pressure

KSPD124: 1159 CFM @ 0.25″ static pressure

KSPD125: 1374 CFM @ 0.25″ static pressure

KSPD126: 1504 CFM @ 0.25″ static pressure

KSPD127: 1591 CMF @ 0.25″ static pressure

Need a custom size?
Call us for a custom configure. 800.333.5151
