CP4B-BR
SKU: CP4B-BR
In Stock
Model Number: CP4B-BR

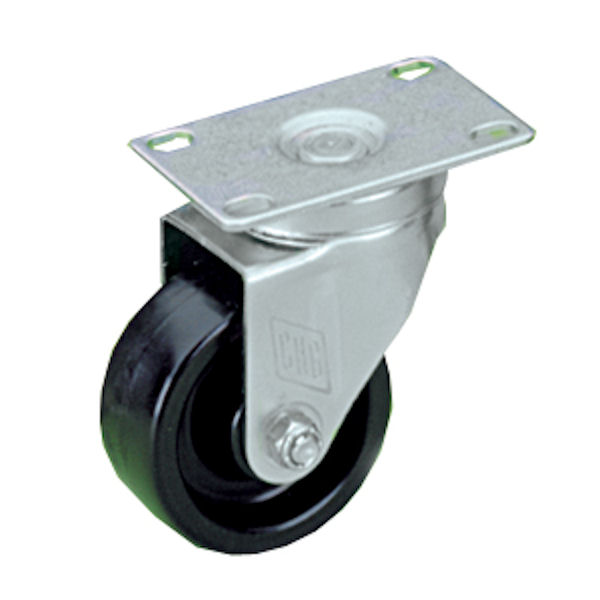

Medium duty swivel plate caster with brake.
Full 1-1/4″ (32mm) tread width. Heavy gauge .150″ (4mm) mounting plate provided.
Mounting Plate with hole openings spaced on 1-3/4″ x 3″ (44mm x 76mm) centers to accept 1/4″ or 5/16″ (6mm x 8mm) dia. bolts.
Attributes
Model # CMP1-4BBN
Wheel Dia: 4″ (101mm)
Load Height: 5″ (127mm)
Swivel Radius: 3-3/8″ (86mm)
Load Capacity: 250 lbs (110 kg)
Wheel Type: Black polyolefin
Mounting Plate Size: 2-3/8″ x 3-5/8″ (60mm x 92mm)
