Hood Installation Accessories

In Stock

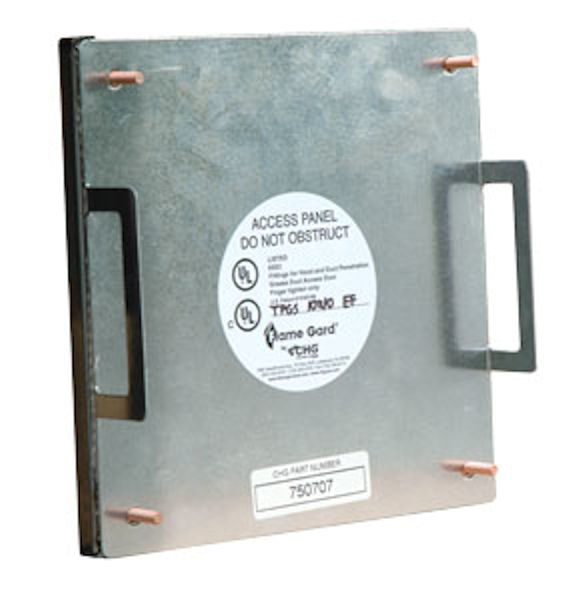

Flame Gard UL fire rated flat access doors.
Heavy-duty 16 gauge steel construction.
Back frame reinforces duct cut-out.

Gasket rated to 2300 degree F (1260 degree C) for fire tight seal.

Easy to install and easy to clean.

Available with extended 4″ (102mm) studs to accommodate fire wrap for flat duct applications. Order with suffix (-4).

Back Frame Outside Dim: 10″ x 10″ (254mm x 254mm)

Front Panel Outside Dim: 10″ x 10″ (254mm x 254mm)

Panel Width: 1/2″ (13mm)

Stud Height: 1″ (25mm)

Hole Size: 7″ x 7″ (178mm x 178mm)

Mounting Studs: 4

Need a custom size?
Call us for a custom configure. 800.333.5151

To Order Call us at 800.333.5151 or inquire below
