100R15DH

SKU: 100R15DH

In Stock

Model Number: 100R15DH

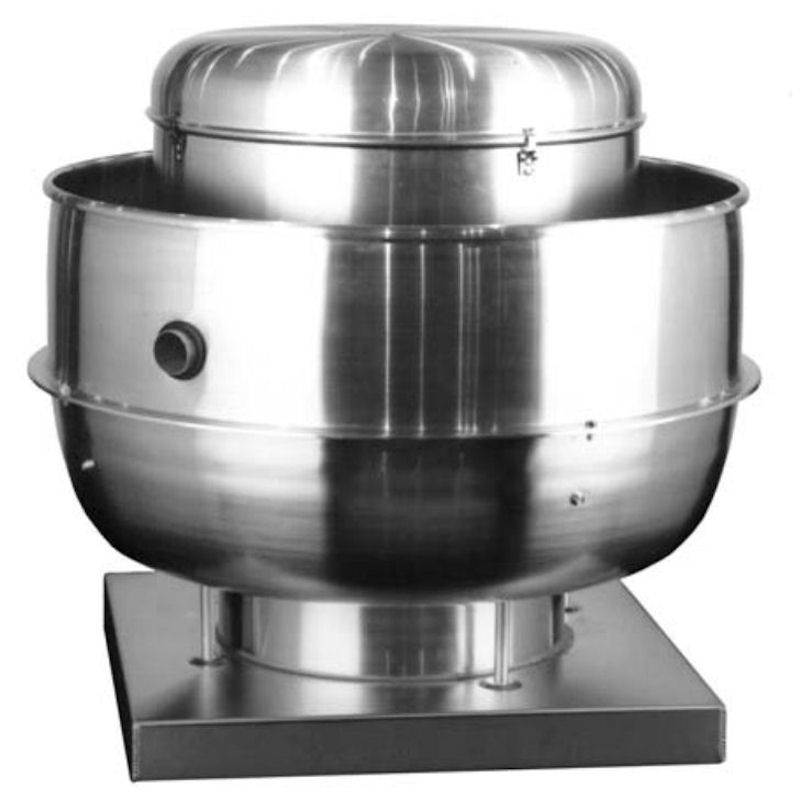

Spun aluminum roof or wall mounted, direct driven, upblast centrifugal exhaust ventilator.  Fan shall be listed by Underwritters Laboratories (UL 705).  The spun aluminum structural components shall be constructed of minimum 16 gauge marine alloy aluminum, bolted to a rigid aluminum support structure.   The motor shall be enclosed in a weather-tight compartment, separated from the exhaust airstream. Wheel shall be centrifugal backward inclined, constructed of 100% aluminum, including a precision machined cast aluminum hub. Motor shall be heavy duty type with permanently lubricated sealed ball bearings and furnished at the specified voltage, phase and enclosure.

*Miami Dade hurricane rated option available*

Attributes

Base: 18″

Motor: 1/8 HP 115 volt / 1 phase 1550 RPM

Drive: Direct

CFM  Range: 816 CFM @ 0″ to 240 CFM @ 3/4″ static pressure

Loren Cook Model #: 100 ACRUD 100R15DH







Need a custom size?
Call us for a custom configure. 800.333.5151
To Order Call us at 800.333.5151 or inquire below
